How do I setup an SRV record for my Factorio server?

An SRV record allows you to point a domain to the IP address of your Factorio server. This guide will show you how to make one that points to your server.

Creating an A DNS Record

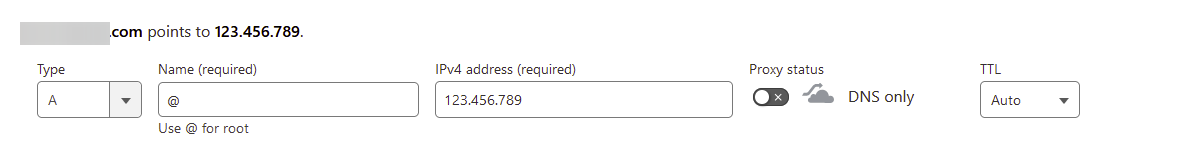

If you're starting from scratch, you'll first want to create an A record pointing to the IP address listed on your server in the Dashboard of the AleForge Panel. Your A record will want to look something like this

Make sure that the IPv4 address is set to what is listed in the Dashboard of your panel.

Creating an SRV Record

Next, we'll need to create an SRV record to point the domain to the correct port.

1. Under name, place a name that will help you remember what this record is for
2. Under priority, set it to 10
3. Under weight, set it to 10
4. Set Port to the primary port listed on the Network page of the AleForge Panel
5. Set target to the domain you want pointing at your server

Depending on who you are using to manage your DNS records, it will take anywhere from a couple of minutes to a couple of hours for your DNS records to propagate to every DNS server. Once this process is done, your domain will be pointing at your Minecraft server.

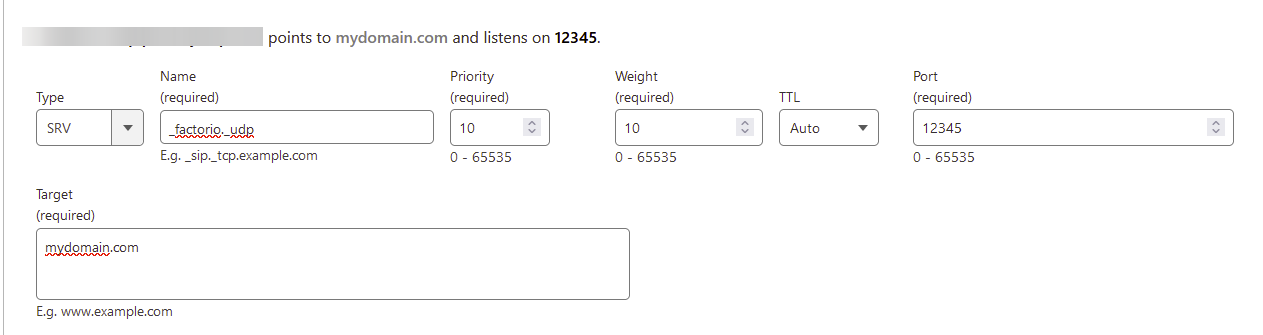

1. Under name, enter the service name and the type of port. For Factorio this is _factorio._udp



2. Under priority, set it to 10
3. Under weight, set it to 10
4. Set Port to the primary port listed on the Network page of the AleForge Panel
5. Set target to the domain you want pointing at your server

Depending on who you are using to manage your DNS records, it will take anywhere from a couple of minutes to a couple of hours for your DNS records to propagate to every DNS server. Once this process is done, your domain will be pointing at your Factorio server.
